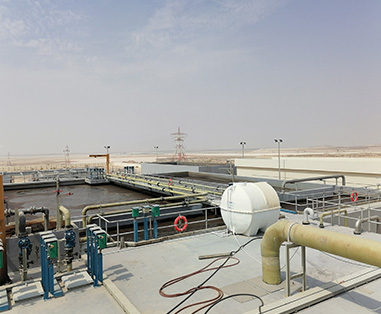

Moving Bed Bio Reactor Plant (MBBR Plant)


Moving Bed Bioreactor Process (MBBR) is a wastewater treatment system specifically designed to treat low flows of domestic, commercial, and light industrial wastewater ranging from 10 – 500 M3 per day with minimal operator interface.

This technology with lower footprint is a better alternative to conventional wastewater treatment plants with larger capacities, which require monitoring at multiple points.

Moving Bed Bio reactor consists of a tank with submerged but floating plastic media having specific gravity less than 1.0. The large surface area of the plastics provide abundant surface for bacterial growth. Biomass grows on the surface as a thin film whose thickness usually varies between 50-300 microns. Each individual bio carrier increases productivity through providing protected surface area to support the growth of heterotrophic and autotrophic bacteria within its cells. It is this high-density population of bacteria that achieves high-rate biodegradation within the system, while also offering process reliability and ease of operation.

Salient Features

  • Available for Skid mounted / Civil type
  • Self-regulating system
  • quick and easy installation
  • Pre-engineered for low cost and fast delivery
  • Achieves <5 TSS mg/l without PAC+ PE dosing
  • Achieves <20 BOD mg/l without using UF membranes

Standard Capacities

  • Prefabricated  (MS ): 10 – 100 M3/Day
  • Site Construction (Civil) : 25 to 5000 M3/Day

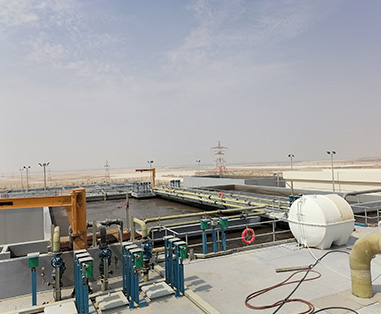

Membrane Bio Reactor Plant:


MBR integrated Sewage treatment system is remove the organic materials from sewage. This treatment process that combines a membrane ultra / micro filtration process and activated sludge process. Treatment process consist of Pre-treatment process, biological treatment, membrane separation technology and post-disinfection process. The MBR process is used in place of before secondary sedimentation tank.


  • Space saving
  • Easy operation (fully automation)
  • HMI /SCADA monitoring
  • High quality treated water
  • Advanced treatment technologies
  • Nitrogen and phosphorus removal can be achieved by anoxic tank.
  • Achieves <1 TSS mg/l
  • Achieves <5 BOD mg/l
