Tube Settler
Tube settlers increase the settling capacity in rectangular sedimentation basins by reducing the vertical distance. The floc particles would settle before agglomerating to form larger particles. The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times. Tube settlers capture the settle able fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settle able form. The settler's channel collects solids into a compact mass which promotes the solids to slide down the tube.
- Reduce the coagulant dosage level by up to half while maintaining a lower influent turbidity to the treatment plant filters
- Less filter backwashing equates to significant operating cost savings for both water and electricity
- New installations using tube settlers can be designed smaller because of increased flow capability
- Flow of existing water treatment plants can be increased through the addition of tube settlers
- Tube settlers increase allowable flow capacity by expanding settling capacity and increasing the solids removal rate in settling tanks
Application Areas
- Well / Surface water Treatment
- Sewage Treatment
- Primary Effluent Treatment
Plate Separator:
Plate separator increase the settling capacity in rectangular sedimentation basins by reducing the vertical distance. The floc particles would settle before agglomerating to form larger particles. The settlers use multiple plates sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times. Tube settlers capture the settle able fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settle able form. The settler's channel collects solids into a compact mass which promotes the solids to slide down the tube.
- Low Spare requirement.
- Very low maintenance cost since there are no moving parts.
- High efficiency and capacity combined with compact volume
- Do the maintenance works without affecting effluent quality
Application Areas
- Well / Surface water Treatment
- Sewage Treatment
- Primary Effluent Treatment

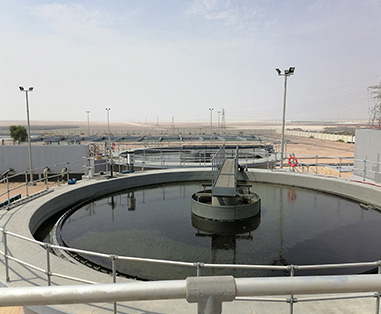

Clarifier
Clarifiers are settling tanks engineered for continuous separation of solids from water by allowing heavy suspended solids to settle at the bottom and clarified water to overflow out to the top. The sludge layer produced at the bottom and the floating scum needs to be removed or thickened for proper disposal. The clarified water or wastewater then goes through the next treatment stage.
- Well / Surface water Treatment
- Sewage Treatment
- Primary and Secondary Effluent Treatment
